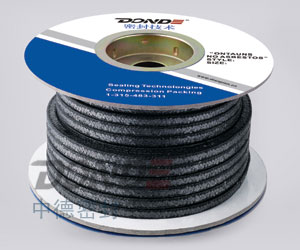

Description:Graphite
gland packing with carbon fiber corner is braided from expanded graphite
yarn, which can withstand high temperature and carbon fiber with
superior corrosion resistance. The carbon fiber in four corners provides
higher resistance to extrusion and attrition. This packing can
effectively avoid leakage, especially suitable in application of powder stantion's valve with high temperature and pressure.
Main specification:
Temperature |
-200℃~+650℃(steam) |
-200℃~+565℃(atmosphere) |
Pressure |
30MPa(can only be
used in valve and other static sealing condition) |
PH range |
0-14 |
Linear speed |
0~2M/S |
Size |
3*3mm-60*60mm（or as the request
of customer） |
Parameter:
Note: 3X3 is twisting instead of weaving.
Cross-section area
(mm) |
Density
（g/cm3） |
g/m |
Cross-section area
(mm) |
Density
（g/cm3） |
g/m |
3X3 |
1.25~1.30 |
12 |
8X8 |
1.15~1.25 |
97 |
4X4 |
1.25~1.30 |
21 |
9.5X9.5 |
1.15~1.25 |
108 |
4.7X4.7 |
1.25~1.30 |
31 |
10X10 |
1.15~1.25 |
120 |
5X5 |
1.25~1.30 |
32 |
11X11 |
1.15~1.25 |
145 |
6X6 |
1.25~1.30 |
45 |
12X12 |
1.15~1.25 |
172 |
6.5X6.5 |
1.25~1.30 |
53 |
12.5X12.5 |
1.15~1.25 |
194 |
7X7 |
1.25~1.30 |
82 |
14X14 |
1.15~1.25 |
235 |
15X15 |
1.15~1.25 |
270 |
24X24 |
1.0~1.10 |
615 |
16X16 |
1.10~1.20 |
294 |
25X25 |
1.0~1.10 |
677 |
17.4X17.4 |
1.10~1.20 |
348 |
28X28 |
1.0~1.10 |
823 |
18X18 |
1.10~1.20 |
373 |
30X30 |
1.05~1.10 |
945 |
19X19 |
1.05~1.15 |
397 |
32X32 |
1.05~1.10 |
1075 |
20X20 |
1.05~1.15 |
440 |
35X35 |
1.00~1.05 |
1255 |
22X22 |
1.05~1.15 |
532 |
40X40 |
0.95~1.05 |
1600 |
How to Order：
Item |
Order Code |
Graphite braided Packing |
ZD-P1000 |
Cotton fibre reinforced graphite
packing |
ZD-P1100 |
Glass fibre reiforced graphite
packing |
ZD-P1101 |
Stainless steel wire reinforced graphite
packing |
ZD-P1102 |
Nickel wire reinforced graphite
packing |
ZD-P1103 |
Inconnel wire reinforced
graphite packing |
ZD-P1104 |
Innconel mesh jacket graphite
packing |
ZD-P1105 |
High strength graphite packing for
temperature and high pressure |
ZD-P1106 |
PTFE impregnated graphite packing |
ZD-P1107 |
| No ignition loss graphite packing |
ZD-P1108 |
| Expanded graphite packing with
carbon fiber corners |
ZD-P1109 |
For more information,please
contact with us directly,thanks！
