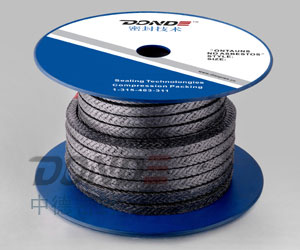

Description:Graphite
packing with inconel jacketed mesh is braided by graphite yarn which is
reinforced multi inconel wire and wrapped with inconel wire mesh.
Graphite packing with inconel jacketed mesh is diagonal braided to form
a dense but pliable packing, further enhanced with blocking agents.Easy
installation and extrusion resistance in single-spool packing.The Graphite packing with inconel jacketed mesh is formable
to tough in steam service 550bar, maintains integrity in steam up to
850℃. Inconel
Mesh wrapping Graphite Fibre Braided Packing is special
for high pressure and high temperature steam service.
Main Specification:
Temperature |
850℃（in the steam） |
450℃ Oxidizing condition（oxidizing
condition） |
-204℃ Cryogenics （low temperature） |
Pressure |
9-45MPa |
PH range |
0-14 |
Linear speed |
2~15M/S |
Size |
3*3mm-60*60mm（or as request） |
Parameter:
Note: 3X3 is twisting instead of weaving.
Cross-section area
(mm) |
Density
（g/cm3） |
g/m |
Cross-section area
(mm) |
Density
（g/cm3） |
g/m |
3X3 |
1.25~1.30 |
12 |
8X8 |
1.15~1.25 |
97 |
4X4 |
1.25~1.30 |
21 |
9.5X9.5 |
1.15~1.25 |
108 |
4.7X4.7 |
1.25~1.30 |
31 |
10X10 |
1.15~1.25 |
120 |
5X5 |
1.25~1.30 |
32 |
11X11 |
1.15~1.25 |
145 |
6X6 |
1.25~1.30 |
45 |
12X12 |
1.15~1.25 |
172 |
6.5X6.5 |
1.25~1.30 |
53 |
12.5X12.5 |
1.15~1.25 |
194 |
7X7 |
1.25~1.30 |
82 |
14X14 |
1.15~1.25 |
235 |
15X15 |
1.15~1.25 |
270 |
24X24 |
1.0~1.10 |
615 |
16X16 |
1.10~1.20 |
294 |
25X25 |
1.0~1.10 |
677 |
17.4X17.4 |
1.10~1.20 |
348 |
28X28 |
1.0~1.10 |
823 |
18X18 |
1.10~1.20 |
373 |
30X30 |
1.05~1.10 |
945 |
19X19 |
1.05~1.15 |
397 |
32X32 |
1.05~1.10 |
1075 |
20X20 |
1.05~1.15 |
440 |
35X35 |
1.00~1.05 |
1255 |
22X22 |
1.05~1.15 |
532 |
40X40 |
0.95~1.05 |
1600 |
How to Order：
Item |
Order Code |
Graphite braided Packing |
ZD-P1000 |
| Cotton fibre reinforced graphite
packing |
ZD-P1100 |
Glass fibre reiforced graphite
packing |
ZD-P1101 |
Stainless steel wire reinforced graphite
packing |
ZD-P1102 |
Nickel wire reinforced graphite
packing |
ZD-P1103 |
Inconnel wire reinforced
graphite packing |
ZD-P1104 |
Innconel mesh jacket graphite
packing |
ZD-P1105 |
High strength graphite packing for
temperature and high pressure |
ZD-P1106 |
PTFE impregnated graphite packing |
ZD-P1107 |
| No ignition loss graphite packing |
ZD-P1108 |
| Expanded graphite packing with
carbon fiber corners |
ZD-P1109 |
For more information,please
contact with us directly,thanks！
