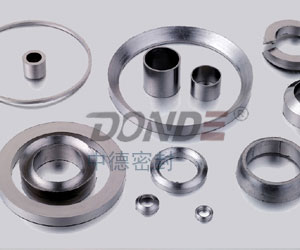

Description: Die-formed Graphite Rings are made of low-sulphur expanded graphite without any fillers or binders. Die-formed Graphite Ring are compressed in precise moulding tools to the required density.It is mede from the high purity of the material (>99%), no special corrosion protection is required. In general, Die-formed Graphite Ring has square section and also has V-shaped and wedge-shaped section.Die-formed Graphite Ring are suitable for high pressure sealing....

Description:Self sealing graphite ring is also called self sealing graphite packing ring. It is made of pure flexible graphite paper, and after shearing, the graphite paper is twisted into a circular graphite filler with a circular band 45 degree angle oblique mouth in the mold. It can be used in the sealing of the upper and lower ends of the packing letter and can be used in a complete set. It is especially suitable for the sealing of the high temperature and ...

Description: Self sealing graphite ring is also called self sealing graphite packing ring. It is made of pure flexible graphite paper, and after shearing, the graphite paper is twisted into a circular graphite filler with a circular band 45 degree angle oblique mouth in the mold. It can be used in the sealing of the upper and lower ends of the packing letter and can be used in a complete set. It is especially suitable for the sealing of the high temperature and...

Description: Combination packing ring is generally made up of all kinds of molded packing ring and graphite packing ring. In order to adapt to the sealing of various working conditions, the weakness of the pure graphite packing ring is overcome easily by extrusion or single coil sealing, usually by the high carbon disk root ring (ZD-RP1310) or the whole nickel base ring (ZD-RP1105) as the end ring, with pure graphite ring or graphite disc ring in the middle.

Description:It is suppressed by various kinds of packing ring. It is suitable for various applications, such as aramid packing ring, pure tetrafluoroethylene ring, four aramid tetrafluoroethylene ring, asbestos tetrafluoro packing ring, asbestos graphite packing ring, high carbon fiber packing ring, tetrafluoro graphite packing ring, ramie packing ring, high water base packing ring, acrylic fiber packing ring, etc. According to the performance characteristics o...

Description: Molded Packing Ring? is also called the flexible graphite coil root ring, which is made up of graphite root or various reinforced graphite plates, such as glass fiber reinforced graphite coil root, stainless steel wire reinforced graphite coil root and so on by mould pressing into ring, and the seal of upper and lower end of packing letter can also be used separately, the advantages of disc root and common graphite ring are assembled. The ink pa...

Description:PTFE Fibre Braided Packing ring is molded by the tetrafluoroethylene root. It is a common type of packing ring used in corrosion resistant and clean working conditions, such as food, medicine, paper making and other industries. The pretreated tetrafluoroethylene root ring is significantly more effective than the conventional tetrafluoroethylene root.
...

Description: Carbonized Fiber Packing Ring is made of a die. It is also called the preoxygen wire rod ring, which can be used as the end face seal of the packing material, and can also be used alone. It has excellent thermal conductivity, wear resistance and chemical stability.
...

Description: Carbonized Fiber Packing Ring is made of a die. It is also called the preoxygen wire rod ring, which can be used as the end face seal of the packing material, and can also be used alone. It has excellent thermal conductivity, wear resistance and chemical stability.
...

Description: Kevlar Fibre Braided Packing ring is made of aramid fiber packing die after mold pressing. It has good chemical resistance, high resilience and low cold flow. It has excellent properties of high rotational speed and high modulus. It is called artificial metal wire. Its strength is three times of wire and five times lighter than metal wire. Therefore, compared with other types of packings, it can resist granular crystalline medium and higher tempera...
