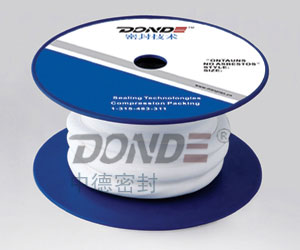

Description:ZD-T2000 expanded
PTFE valve-stem packing is a pliable,self-lubricating packing.It
eliminates stem wear and lasts indefinitely.ZD-T2000 expanded
PTFE valve stem packing is continuous-length packing and installed
easily.It can be formed into a cohesive cylinder when compressed.It
eliminate the need of cutting and form rings.It has wide range of
applications.It is used to fill flaws and irregularities and has long
service time.So the use of Expanded PTFE valve-stem packing can reduce
inventory.
The Virtue of expanded
PTFE valve-stem packing：
Easy to
be installed
Perfect Sealing Constant
Longer
service time
No
pollution
Economic
sealing material
Main Specification：
Pressure |
20Mpa |
Temperature |
=<280 ℃ |
PH |
0-14 |
Density |
0.7～0.8 g/cm3 |
Common
Size of ZD-T2000 expanded
PTFE valve-stem packing:
Diameter(mm) |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
14 |
16 |
18 |
20 |
Length(m)/kg |
440 |
200 |
110 |
70 |
50 |
37 |
28 |
22 |
18 |
15 |
13 |
9 |
7 |
5.5 |
4.5 |
Package Size（mm） |
1kg/roll（157x157x157） 5kg/roll（240x240x300） |
The package information is for referrence,there may be some difference.
For more information,please contact with us
directly,thanks！
