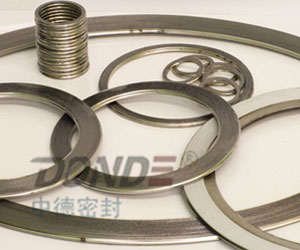

Description: Spiral wound gasket for heat
exchangers are designed for heat
exchangers, it can be with or
without inner and outer
rings.This style spiral wound
gasket is for heat exchangers
where pass bars are required.
The outer portion is of standard
spiral wound construction. The
rib portion is normally of
single or double jacketed style.
Typical
Applications
The gaskets which with outer
rings are primarily designed for
TEMA male and female flanges.
Gaskets are custom built to
suit the design conditions of
individual heat exchanger
vessels.
Prime Features
The outer wound nose to ensure
correct sealing element location
in the flange recess.
A spiral wound sealing element
to ensure a positive seal under
fluctuating temperature and
pressure conditions.
A solid metal inner ring to
protect the sealing element and
act as a compression stop.
Can be supplied with pass
partition bars in any
configuration. Pass bars are
secured to the inner ring can be
supplied in either solid metal
or double jacketed construction.
Specifications
Spiral wound with inner or outer
or with partition ribs acts a
pass bars. Manufactured to
customer design.
