Description:ZD-CD

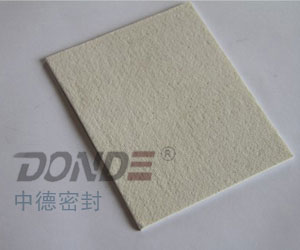

Ceramic Fibre Paper low
coefficient of heat-conduction ratio,low thermal capacity,thermal shock
resistance,high quality of flexility and tear resistance.It does not
include asbestos,erosion resistance,not act with aluminium liquid.It is
with high quality of insulation and sound insulation,high quality of
compression resistance and easiness of mechanical processing.
Application
rage:Insulation,seal and safety materials for industrial need.
Insulation and heat insulation materials for electrica thermal
equipments. Insulation and heat insulation for appatatus,equipments and
electro thermal components. Heat insulation materials for automobile.
Main Specification:
Categorised Temperature(℃) |
1260 |
Density of Volume(kg/m3) |
200±15 |
Content of Organic matter |
6－8 |
Coefficient That
Heat Conduct
Under AverageTemperature (w/m.k)
(Density 200kg/m3) |
200℃ |
0.075-0.085 |
400℃ |
0.115-0.121 |
600℃ |
0.165-0.175 |
Main Chemical
Compositions (%) |
AL2O3 |
45－46 |
45－46 |
45－46 |
SIO2 |
51－52 |
51－52 |
51－52 |
Standard Size(mm) |
Thickness 0.5～6
Width 610/1220 |
40000×1220×1
20000×1220×2 |
40000×1220×1
20000×1220×2 |
900×610×2
600×400×3 |
Special size can be made as request.
Packing：Plastic（inner）
Carton（Outer）
