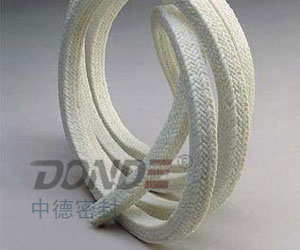

Description:Braided from high strength PAN synthetic fiber pre-impregnated with PTFE and
special lubrication, and re-impregnated during square braiding. It has
excellent properties of sealing, lubricating and resistance to
chemicals.
ZD-P1800C PAN Fiber Packing with
Rubber Core
High elastic red silicone rubber core can
absorb vibration, to control leakage, suitable for worn-out pumps.
APPLICATION:Excellent multi-service for a wide variety of uses throughout a plant.
Used in pumps and valves, and can handle most chemicals
except strong acid, strong alkali and strong oxidizer.
Especially for the condition of middle temp. high-pressure,high-speed,and
where contamination is not permitted.
Main Specification:
Temperature |
260℃ |
Pressure |
20bar(revolving)
80bar(reciprocating) 100bar(Valve) |
PH
Range |
1-13 |
Linear
Speed |
20M/S |
| Density |
1.3g/cm3 |
Size |
3*3mm-60*60mm（or as request） |
