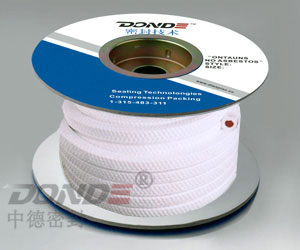

Description:PTFE
Fiber Braided Packing with silicone rubber core is braided with PTFE
filament and blended with silicone rubber in central postion.PTFE Fiber
Braided Packing with silicone rubber core has excellent comperssion
compensating power.PTFE Fiber Braided Packing with silicone rubber core
has same applications as PTFE filament packing.
Main Specification:
Temperature |
-100℃~+260℃ |
Pressure |
5MPa(revolving) 20MPa(reciprocating) 30MPa(static) |
Ph值（PH range) |
2-12 |
Linear
Speed |
10M/S |
Size |
3*3mm-60*60mm（or as request） |
Parameter:
INCH ″ |
1/8 |
3/16 |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
5/8 |
3/4 |
7/8 |
1 |
MM |
3 |
5 |
6 |
8 |
10 |
11 |
12 |
16 |
20 |
22 |
25 |
KG/M |
0.08 |
0.16 |
0.25 |
0.38 |
0.53 |
0.73 |
0.93 |
1.42 |
1.97 |
2.66 |
3.59 |
How to order：
Item |
Order Code |
Pure PTFE Fibre Braided Packing |
ZD-P1200 |
PTFE Packing with oil |
ZD-P1201 |
Mutiple PTFE Filament Packing |
ZD-P1202 |
PTFE Packing with silicone core |
ZD-P1203 |
| PTFE Graphite Packing |
ZD-P1210 |
For more information,please contact with us
directly,thanks！
